Rashtrasant Janardhan Swami College Of Pharmacy, Kokamthan, Kopargaon.
Ethosomes are advanced phospholipid-based vesicular carriers widely used for enhanced transdermal drug delivery. They are mainly composed of phospholipids, ethanol, and water, where ethanol acts as an important penetration enhancer by disturbing the lipid arrangement of the stratum corneum. Due to their soft, flexible, and deformable nature, ethosomes can penetrate deeply into the skin and improve drug permeation and bioavailability. Compared to conventional liposomes, ethosomes show better skin penetration efficiency and improved therapeutic effectiveness. These vesicular systems are capable of carrying both hydrophilic and lipophilic drugs, making them suitable for a wide range of pharmaceutical and cosmetic applications. Ethosomes can be prepared by simple techniques such as hot and cold methods and are often incorporated into gels for better stability and patient compliance. Various evaluation parameters including vesicle size, zeta potential, entrapment efficiency, pH, viscosity, and in vitro drug release are used to characterize ethosomal formulations. Different types of ethosomal systems such as classical ethosomes, binary ethosomes, and transethosomes have been developed to further enhance drug delivery performance. Overall, ethosomes represent a promising, non-invasive, and effective approach for improving transdermal drug delivery with enhanced permeability, controlled drug release, and reduced side effects.
Ethosomes are innovative lipid-based vesicular systems used in transdermal drug delivery. They have gained attention in recent years due to their ability to enhance the penetration of drugs through the skin. The skin acts as a strong barrier, mainly because of the outermost layer called the stratum corneum, which limits drug absorption. Ethosomes help to overcome this barrier effectively. Ethosomes are composed of phospholipids, a high concentration of ethanol, and water. The presence of ethanol makes these vesicles soft, flexible, and highly deformable, allowing them to penetrate deeply into the skin layers. Ethanol also disrupts the lipid structure of the skin, which further enhances drug permeation. Structurally, ethosomes consist of a phospholipid bilayernclosing an aqueous core. They can carry both hydrophilic and lipophilic drugs and improve their bioavailability. Compared to conventional systems like liposomes, ethosomes show better skin penetration and delivery efficiency. Ethosomes are non-invasive and offer several advantages such as improved drug delivery, reduced side effects, better patient compliance, and controlled drug release. Due to these benefits, they are widely used in pharmaceutical and cosmetic applications for topical and transdermal delivery systems.

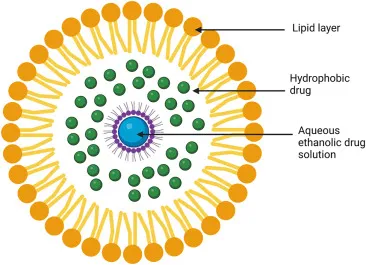

Fig 1. Structure of Ethosomes [2]
Ethosomes are soft, flexible lipid vesicles designed to enhance transdermal drug delivery. They are mainly composed of phospholipids, high concentrations of ethanol, and water, which make them more malleable and unique compared to conventional liposomes. The high ethanol content disturbs skin lipid organization and fluidizes both the ethosomal membrane and the stratum corneum lipids, allowing the vesicles to penetrate deeply into the skin layers. Because of their soft structure and strong penetration ability, ethosomes
significantly improve drug transport through the stratum corneum and provide efficiencydelivery to deeper skin tissues or systemic circulation. For Preparation of Ethosomes mostly preferred Hot Method and Cold Method. [1,2]
TYPES OF ETHOSOMAL SYSTEM:
1. Classical Ethosomes: Classical ethosomes are composed of phospholipids, water and high concentration of ethanol (40%). Drugs having molecular weight ranging from 130,077 Da to 24kDa can be entrapped in classical ethosomes.
2. Binary Ethosomes: Binary ethosomes can be prepared by adding another type of alcohol to the classical ethosomes. Propylene glycol (PG) and isopropyl alcohol (IPA) are most commonly used alcohols.
3. Transethosomes: It contains basic components from classical ethosomes and a penetrationEnhancer (surfactant). Developed to combine the advantages of classical ethosomes and transferosomes to produce transethosomes. Transethosomes are advanced type of ethosomes as they have the advantages of both i.e classical ethosome and transferosomes.

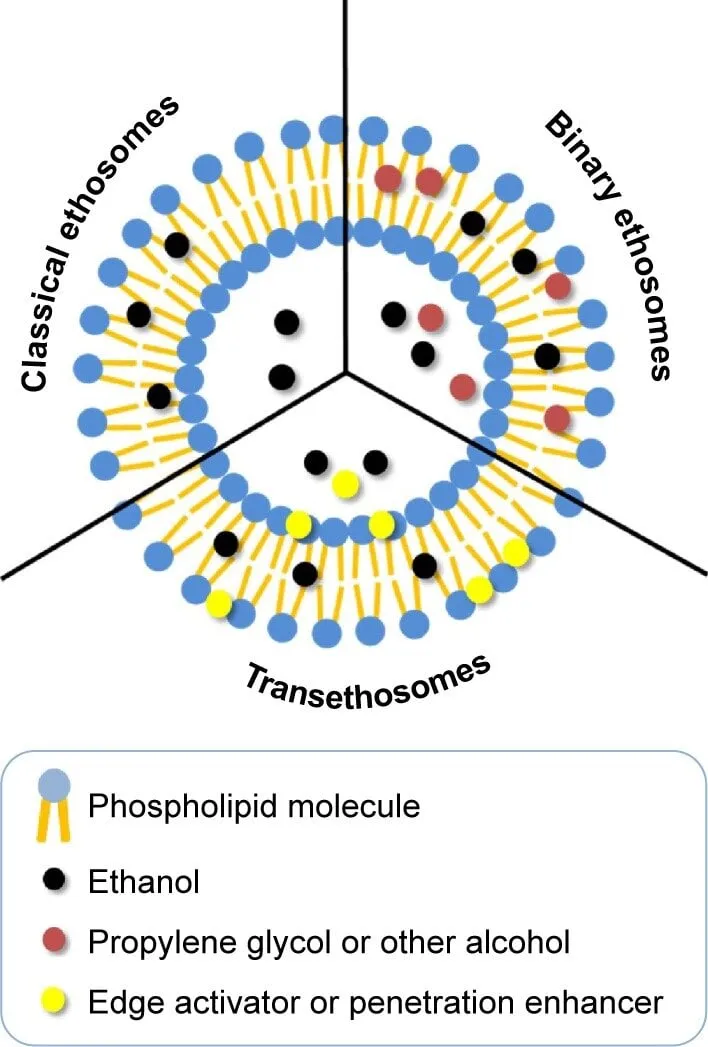

Fig 2. Types of Ethosomes [2]
METHOD:
1. Cold Method
2. Hot Method
3. Mechanical Dispersion Method
4. Classic Method
Cold Method: Phospholipid, cholesterol, drug, ethanol, and PEG were mixed and heated to 40 °C. Distilled water was added slowly with continuous stirring at 700 rpm, and mixing was continued for 5 minutes. The dispersion was cooled for 30 minutes at room temperature. Finally, it was sonicated at 4 °C for five cycles (3 minutes each) using a probe sonicator. [3]

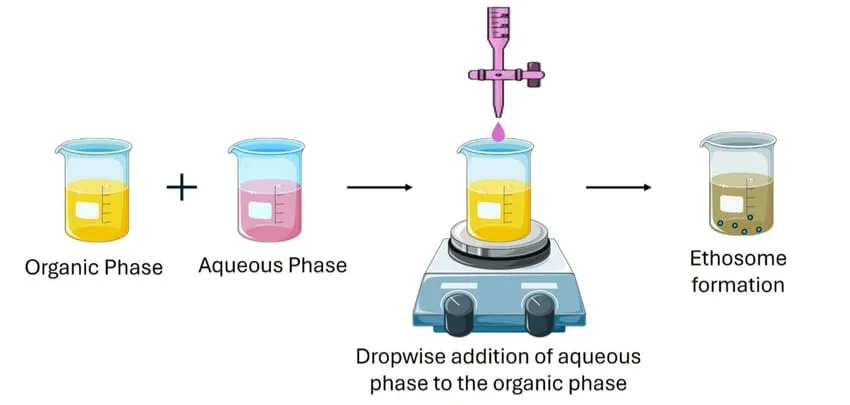

Fig 3. Cold Method [4]
Hot Method: In hot method, phospholipid was dispersed in water and dispersion was heated in a water bath or Hot plate at 40° C until a colloidal solution is obtained. In a separate vessel, ethanol, Drug and propylene glycol are mixed and heated to 40° C. Once both mixtures reach 40°C, the organic phase was added to the aqueous phase. The drug was dissolved in ethanol due to its hydrophobic property. dispersion with continuous stirring on magnetic stirrer (1500 rpm) for 10 minutes. Finally, the prepared formulations were stored in refrigerator.[5]

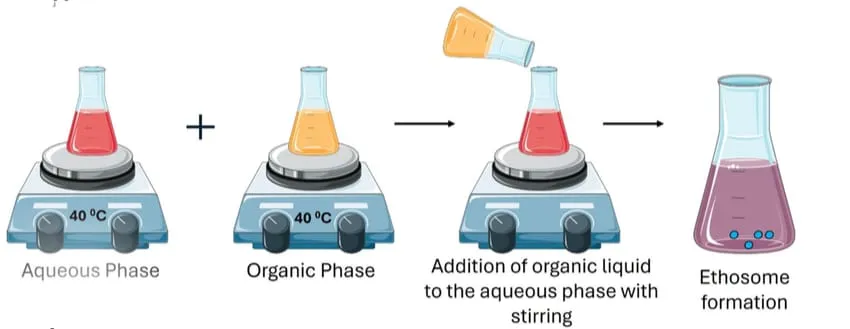

Fig 4. Hot Method [4]
Mechanical dispersion method: The phospholipid and drug are dissolved in ethanol and heated to 30 °C. Distilled water is then added slowly to this mixture with continuous stirring at 700 rpm. The formed vesicle suspension is collected in a closed vessel. Finally, the dispersion is homogenized by passing it through a polycarbonate membrane using a hand extruder for three cycles.[6]

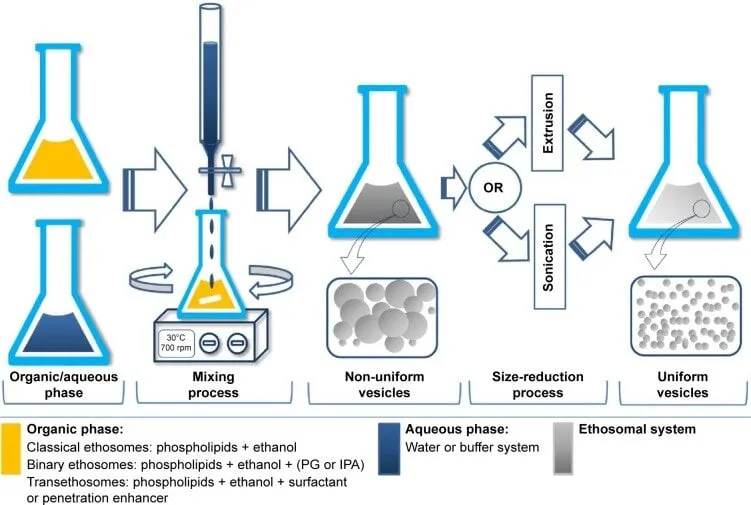

Fig 5. Mechanical Dispersion Method [7]
Classic Method: Soya phosphatidylcholine is dissolved in a chloroform:methanol (3:1) mixture in a round-bottom flask. The solvents are evaporated using a rotary vacuum evaporator above the lipid transition temperature to form a thin lipid film. Remaining solvent traces are removed by keeping the flask under vacuum overnight. The dry lipid film is then hydrated with a hydroethanolic drug solution by rotating the flask at an appropriate temperature.[6]

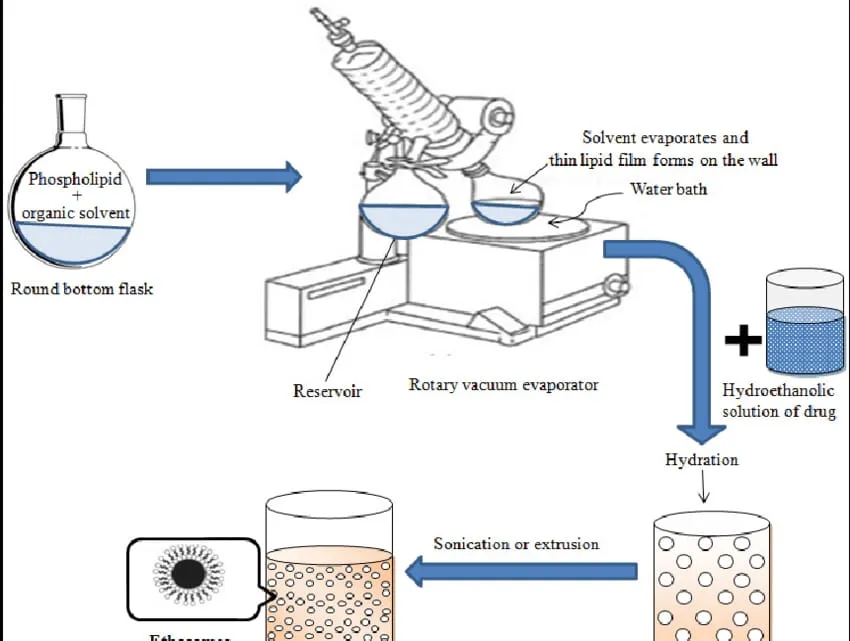

Fig 6. Classic Method [8]
Mechanism of drug penetration:
Ethanol effect
Classic Method Ethanol acts as a strong penetration enhancer by entering intercellular lipids of the stratum corneum, increasing lipid fluidity and decreasing lipid packing. This disruption makes the skin more permeable for drug diffusion. Ethosomes effect: In ethosomes, the high ethanol content fluidizes both vesicle lipids and skin lipids, allowing the vesicles to permeate deeply. Ethosomes then fuse with skin lipids and release the drug into deeper skin layers, enhancing drug delivery.[9,10]
Ethosomes effect:
In ethosomes, the high ethanol content fluidizes both vesicle lipids and skin lipids, allowing the vesicles to permeate deeply. Ethosomes then fuse with skin lipids and release the drug into deeper skin layers, enhancing drug delivery.[11]
Advantages:
1. Allows delivery of large molecules such as peptides and proteins.
2. Uses non-toxic and safe raw materials in the formulation.
3. Provides enhanced penetration of drugs through the skin for transdermal delivery.
4. Can be widely applied in pharmaceutical, veterinary, and cosmetic fields.
5. High patient compliance because ethosomal formulations are usually given as gels or creams, which are easy to apply.[12,13]
Application of ethosomes :
1. Ethosomes are effective in treating viral and microbial skin infections, as seen with bacitracin and erythromycin ethosomal systems.
2. Anti-inflammatory action is shown by ammonium glycyrrhizinate ethosomes on human volunteer skin.
3. Ethosomal patches help in treating androgen insufficiency in males and menopausal symptoms in women (animal studies).
4. Research suggests ethosomes may provide analgesic, antipyretic, and effects against erectile dysfunction.
5. Ethosomes can transport DNA molecules topically to help skin cells express specific genes.
6. Useful for delivering proteins and peptides effectively through skin
Skin :
Skin is composed of multiple layers along with fine wrinkles, hair, and surface lipids. The layers form the main structure of the skin, while wrinkles, hair, and lipids are present on its outer surface. Together, these components show different physical and optical behaviours due to their unique structures.
Skin layers : The skin is an important and adaptable route for both systemic and topical drug delivery. Its outermost layer, the stratum corneum, acts as a strong protective barrier that restricts drug penetration and reduces the bioavailability of medications applied on the skin.

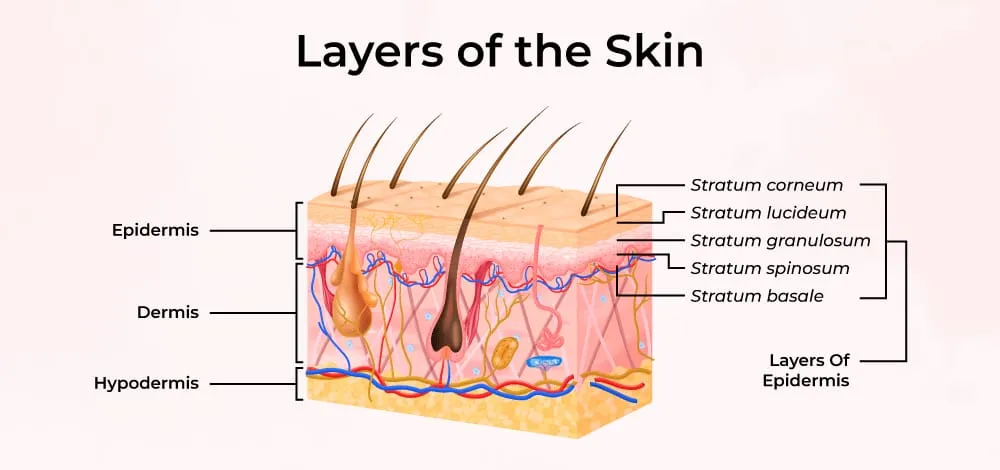

Fig.7 Layers of the skin [14]
Epidermis: The epidermis is the outermost layer of the skin, forming the first protective barrier of the body. Skin mainly has two layers—the epidermis and the dermis—and a clear wavy boundary separates them. The thickness of the epidermis varies depending on age, gender, individual differences, and body region. Its ability to hold water and maintain moisture also changes with age; for example, older skin retains less water due to reduced natural moisturizing factors (NMF). The transparency and condition of the stratum corneum, the outer sub-layer of the epidermis, depends on its water content.
Stratum Spinosum : The stratum spinosum, also known as the prickle cell layer, consists of 10 to 20 layers of cells located above the basal layer of the epidermis. During the natural skin turnover process, these cells become flatter and multi-sided, forming this layer. The cells are called prickle cells because they have small spine-like projections on their surface. The thickness of the stratum spinosum usually ranges from 50 to 150 µm, helping provide strength and support to the epidermis.
Stratum Granulosum (Granular Cell Layer):is a thin layer of about 2–4 rows of granular cells, typically around 3 µm thick. In this layer, keratinocytes begin keratinization, where their nuclei and mitochondria start to break down. The cells become filled with keratin fibers, lose moisture, and flatten as they move toward the skin surface.
Stratum Lucidum (Clear Layer): Stratum lucidum is a thin, clear layer present only on the palms and soles. The cells in this layer are flat, densely packed, and highly refractive. It provides extra protection in thick skin and forms during the normal process of cell turnover.
Stratum Corneum (Horny Cell Layer): Stratum corneum is the outermost layer of the epidermis, with a thickness of 8–15 µm. It is made of several layers of dead, flat keratinfilled cells called corneocytesp. This layer prevents water loss and protects the skin from dehydration. Corneocytes are surrounded by intercellular lipids and contain natural moisturizing factors (NMF) that help retain moisture.
Dermis: Dermis is the second, deeper layer of the skin located beneath the epidermis. It is much thicker than the epidermis (about 1–4 mm) and is mainly composed of collagen and elastin fibers, which provide strength, elasticity, and support. The dermis contains fewer cells but many fibers and also houses important structures like blood vessels, nerves, hair follicles, and glands.
Materials used for the Preparation of Ethosomes:[3]
|
Sr. No |
Ingredients |
Role |
|
1 |
Drug |
API |
|
2 |
Phospholipid (soya lecithin) |
Vesical forming agent |
|
3 |
Ethanol |
Penetration Enhancer |
|
4 |
Propylene glycol |
Stabilizer / Co-Solvent |
|
5 |
Span 80 |
Surfactant (reduce vesical size) |
|
6 |
Distilled Water |
Vehicle |
Table 1- Preparation of Ethosomes
Evaluation Parameter of Ethosomes:
Particle Shape:
The ethosomal particle shape study under a compound microscope is carried out by first preparing the sample, where a small amount of ethosomal suspension is taken and, if it appears too concentrated, it is diluted with distilled water. A drop of this prepared sample is then placed carefully on a clean glass slide. After that, a coverslip is gently placed over the drop to avoid the formation of air bubbles. The slide is then positioned under the compound microscope, and the observation is started at low magnification (10×), followed by higher magnification (40×) for better clarity. Finally, the fine focus knob is adjusted to obtain a clear view of the vesicles, allowing proper visualization of the shape and morphology of the ethosomal particles.
Zeta Potential & Particle Size :
The vesicle size, size distribution (polydispersity index), and zeta potential of the formulation were measured using a Zeta sizer based on dynamic light scattering (DLS) and electrophoretic light scattering techniques.
pH:
The pH of the ethosomal dispersion was measured using a calibrated digital pH meter at room temperature. The measurements were carried out directly on the dispersion, and readings were recorded in triplicate.
Entrapment Efficiency :
Entrapment efficiency was evaluated by estimating the amount of unentrapped (free) drug present in the aqueous phase of the ethosomal dispersion.Approximately 1 mL of the drug-loaded ethosomal formulation was transferred into centrifuge tubes and subjected to high-speed centrifugation for about 30 minutes. After centrifugation, the vesicles containing the entrapped drug formed a pellet at the bottom, while the unentrapped drug remained in the supernatant.The collected supernatant was then analyzed using a UV spectrophotometric method to determine the concentration of free drug.[3]
The entrapment efficiency was calculated using the formula:
% EE = Total drug content – Free drug content x 100
Total drug content
Stability Study :
Stability study was carried out for drug loaded ethosomes at 3 different temperatures i.e. refrigeration temperature (4.0 ± 0.2°C) at room temperature (25-28 ± 2°C) and 45±1°C) for 45days. The formulation subjected for stability study was stored in borosilicate container to avoid any interaction between the formulation and glass of container. The particle size of formulation was determined by optical microscopy using a calibrated ocular micrometer.[3]
CONCLUSION
Ethosomes represent an advanced and effective vesicular drug delivery system for enhancing transdermal drug penetration. Their unique composition, especially the high ethanol content, provides improved flexibility and permeability, allowing drugs to penetrate deeper into the skin layers compared to conventional systems. Ethosomes can encapsulate both hydrophilic and lipophilic drugs and offer advantages such as better bioavailability, controlled drug release, and reduced side effects.Various preparation methods like cold and hot methods make their formulation simple and reproducible. Evaluation parameters such as particle size, zeta potential, pH, and entrapment efficiency ensure the quality and stability of the system. Additionally, ethosomal formulations show wide applications in pharmaceutical, cosmetic, and therapeutic fields.Overall, ethosomes provide a promising, non-invasive, and efficient approach for transdermal drug delivery, improving patient compliance and therapeutic effectiveness. Future research can further enhance their potential in targeted and controlled drug delivery systems.
